The Novastar TB2-4G media player, when combined with the DISPL player, allows businesses to run advertising campaigns without relying on additional media boxes. This guide walks through the complete setup process.


Required Tools

Before starting, make sure you have the following:

• Laptop with Windows OS (minimum Windows 7 SP1 64-bit; Windows 10 22H2 is recommended)

• Platform-tools with ADB installed

  • Download: SDK Platform Tools

• ViPlex Express application (version 3.0 or newer recommended)

  • Download: ViPlex Express

  • Direct link to version 3.0.4.2001: Download here

• TB2-4G media player with power adapter, connected to the same local network as your laptop

• DISPL Android Player APK

  • Example used: Player-6.9.9s-ar-arm.apk (newer versions recommended if available)



  Setup Steps:

  • The installation process can be summarized as follows:

  • Configure ViPlex Express

  • Install the player using ADB

  • Grant the player device-owner rights

  • Bind the player to the platform

  • Configure delayed auto-start

  • Each step is explained in detail below.



  1. Configure ViPlex Express

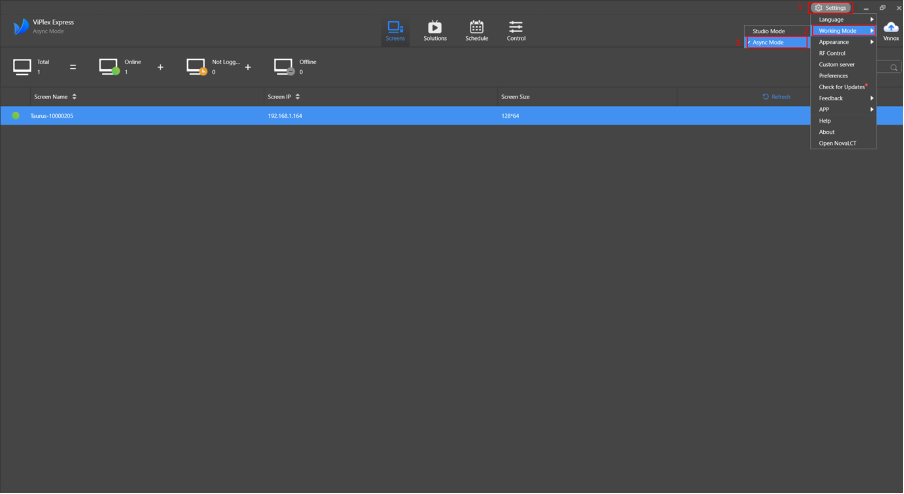

• Launch ViPlex Express and switch it to Async Mode: Settings -> Working Mode -> Async Mode

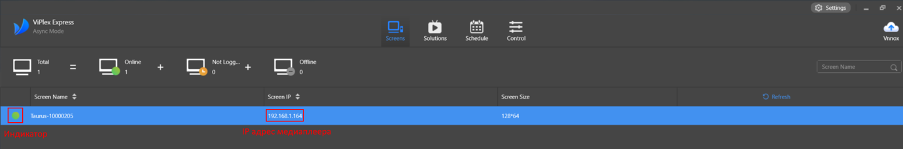

• If the TB2-4G is on the same LAN, it will appear in the connected devices list with a green status indicator, confirming proper operation and IP address availability.

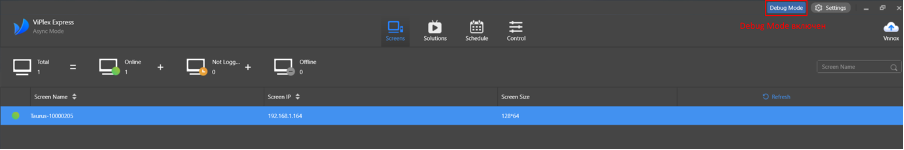

• Activate Debug Mode by selecting the application window and typing selftest. A debug indicator will appear in the upper-right corner.

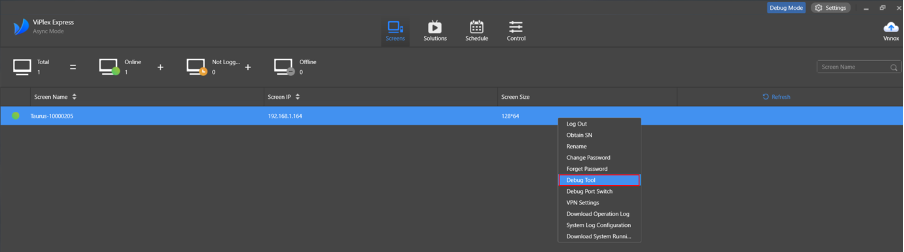

• Right-click the connected media player (e.g., Taurus-10000205) and select Debug Tool.



• In the Debug Tool console, enable ADB over TCP/IP by entering:

         setprop service.adb.tcp.port 5555
         stop adbd
         start adbd

• You can now close Debug Tool.

       2. Install DISPL Player via ADB

• Open PowerShell or your preferred terminal (e.g., WSL2 Ubuntu).

• Connect to the media player using its IP address:
  adb connect 192.168.1.164

• Verify the connection:
   adb devices


• Install the player:
  adb install -r -d /mnt/c/players/Player-6.9.9s-ar-arm.apk


• A successful installation will return the message: Success.

  3. Grant Device-Owner Rights

• Assign device-owner status to the installed player:

  adb shell dpm set-device-owner ai.displayforce.player/com.addreality.player.AdminReceiver


• Confirm rights were applied correctly:

  adb shell dumpsys device_policy



  4. Configure AutoStart with Delay

• For stable operation, the DISPL player should start automatically with a 30-second delay after system boot.

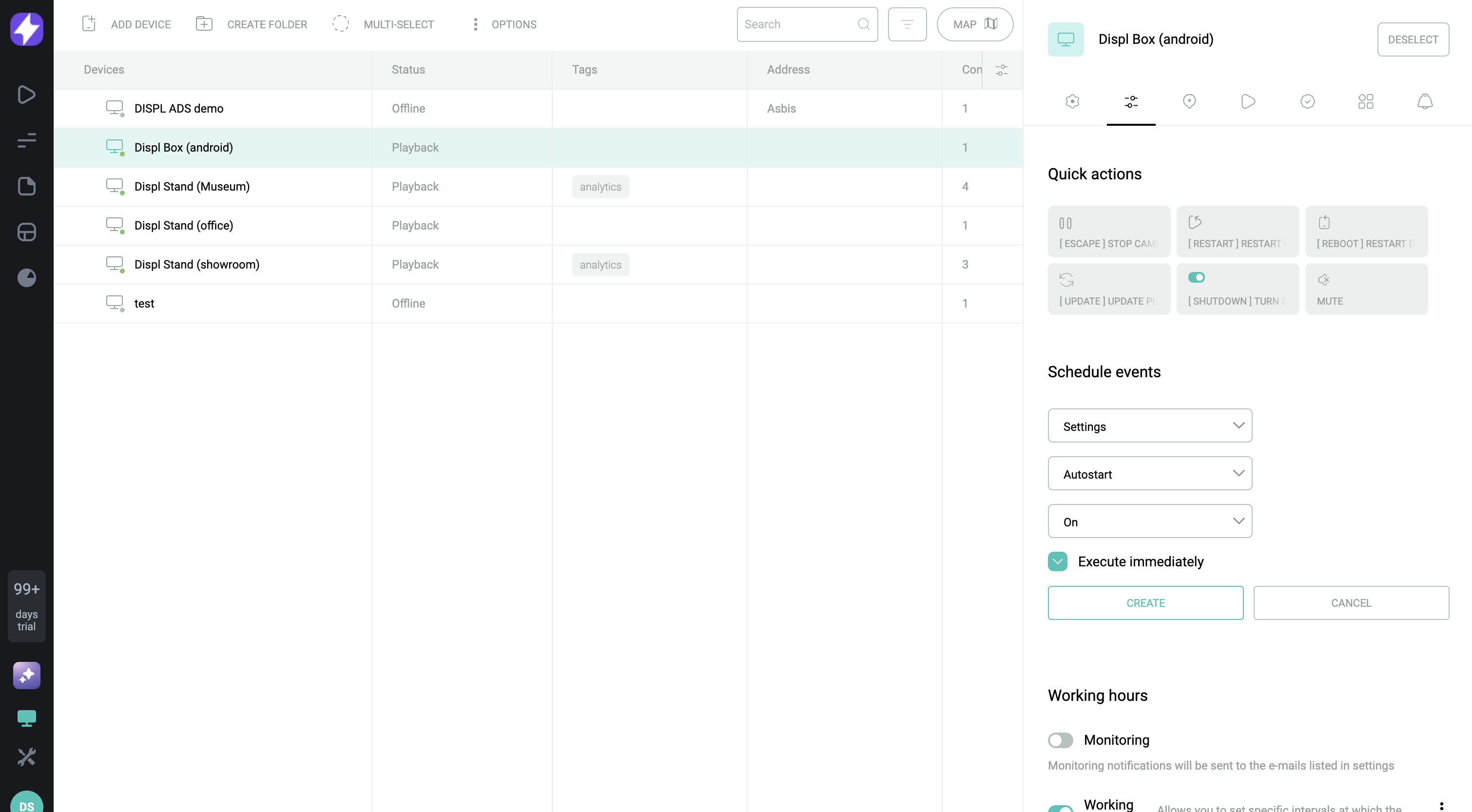

• Enable Autostart via the control panel.

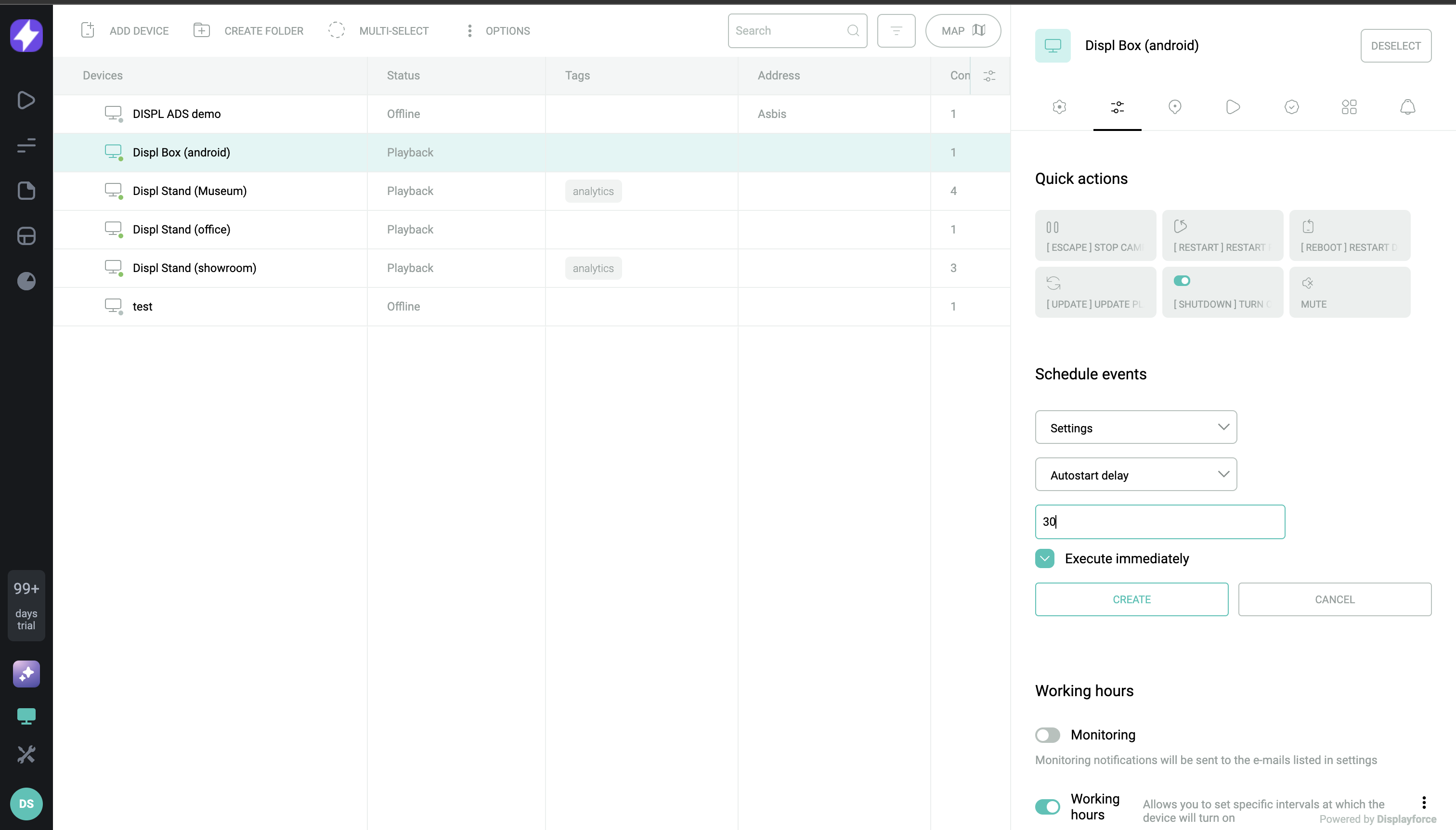

• Set the startup delay to 30 seconds.





  Final Result

  By following these steps, you can successfully install the DISPL player on a Novastar TB2-4G media player. This setup allows you to run advertising campaigns directly on the device without requiring an additional external content provider or media box.
